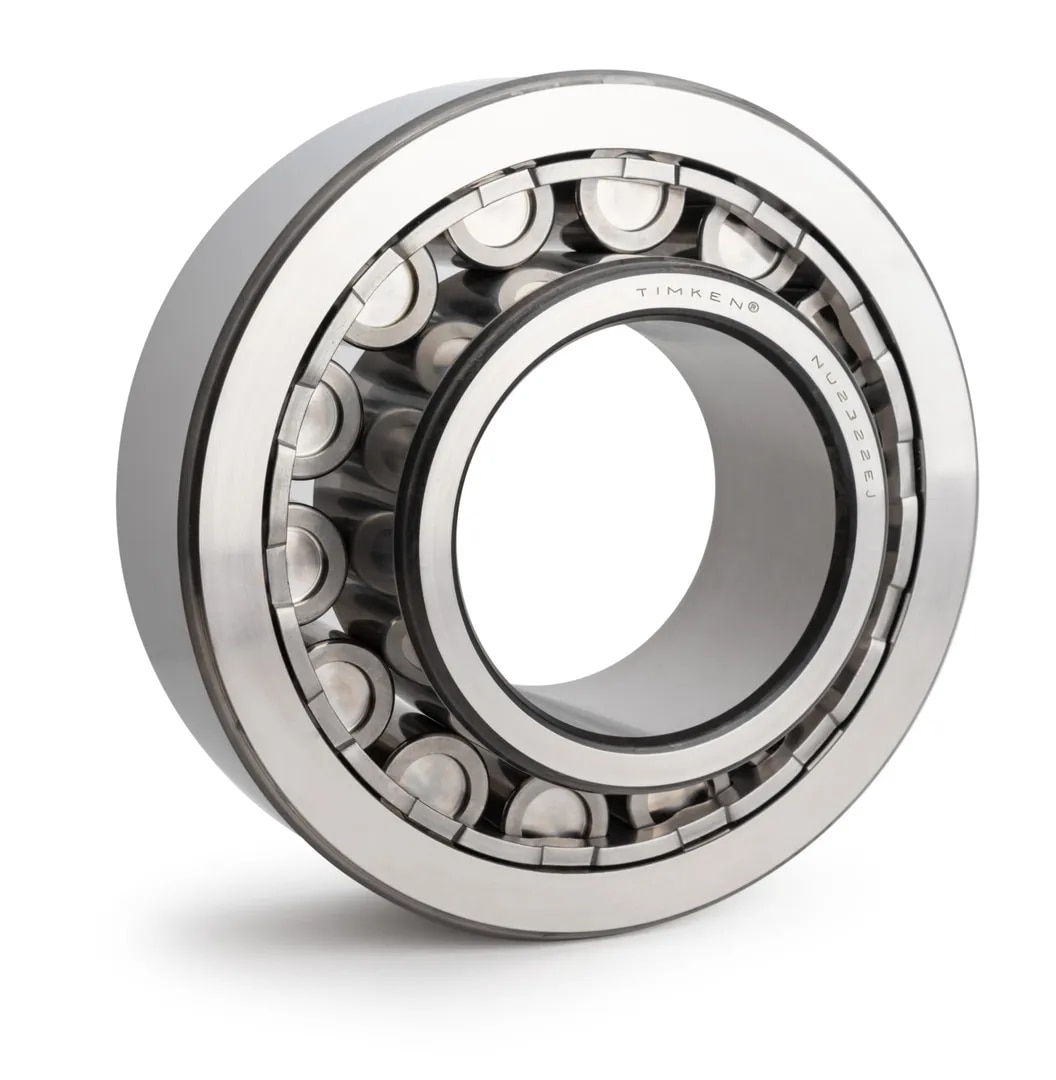

Cylindrical Roller Bearings

Timken offers standard and specially designed single-row cylindrical

roller bearings in a wide range of configurations and series for your application

requirements. Our EJ series steel cage bearings available in 65-150 mm bore sizes, are

part of our offering that includes brass cage and full-complement cylindrical roller

bearings.

Size range: 65 to 150 mm OD

Design Attributes

Available in brass cage, steel cage and full-complement designs

Dimensionally interchangeable industry-standard mounted bearings from 65 mm to 1,200 mm

High load carrying capacity resulting from proprietary profiles and optimized raceway surfaces

Smooth surfaces reduce friction and lower operating temperatures to promote longer bearing life.

Key Applications

Gear drives

-Helical industrial gearboxes

-Planetary gearboxes

-Geared motors

Pumps

Compressors

Electric motors

Centrifuges

Chart / Table

Cylindrical Roller Bearing Series

Cage Type Dimensions Series Designs Size Range Cage Construction

EJ 2, 3, 22, 23 NU, NJ 65 mm to 150 mm bore Stamped steel

EMA 2, 3, 22, 23 N, NU, NJ, NUP 65 mm to 400 mm bore Machined brass

NCF 29 NCF 65 mm to 800 mm bore Full complement

NCF 18 NCF 150 mm to 1050 mm bore Full complement
