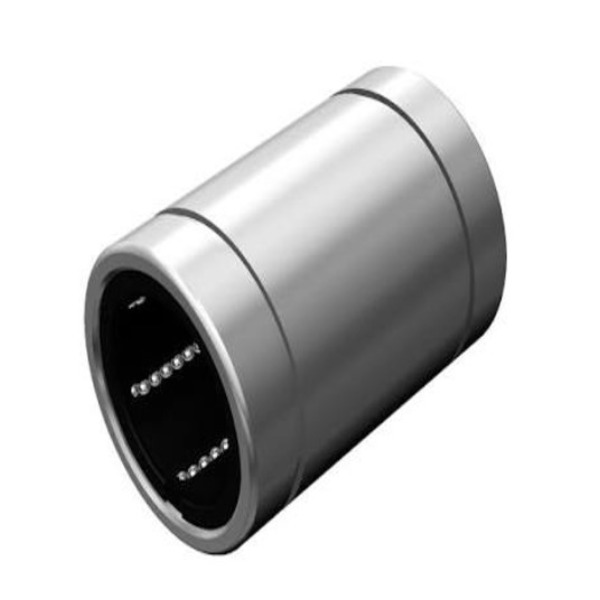

The **THK LM20UU Linear Bearing** is a high-precision linear motion bearing designed to provide smooth, accurate, and low-friction movement along a hardened linear shaft. Manufactured by THK, a globally recognized leader in linear motion technology, the LM20UU is widely used in industrial automation, CNC machinery, packaging equipment, robotics, medical devices, textile machinery, semiconductor equipment, and various precision engineering applications. Designed to deliver reliable linear motion with exceptional durability, this linear bearing is an ideal solution for applications requiring high positioning accuracy, smooth travel, and long service life.
The THK LM20UU features a **20 mm inner diameter (ID), 32 mm outer diameter (OD), and 42 mm overall length**, making it suitable for standard 20 mm precision shafts. The bearing is equipped with seals on both ends (UU type), which help prevent dust, dirt, and contaminants from entering the rolling elements while retaining lubricant inside the bearing. This sealed construction significantly improves bearing life, reduces maintenance requirements, and ensures consistent performance even in demanding industrial environments.
The internal construction of the LM20UU consists of multiple rows of precision steel balls that circulate continuously through accurately machined raceways. As the shaft moves through the bearing, the balls roll with minimal friction, allowing exceptionally smooth linear motion. Compared to conventional sliding bushings, the rolling contact design reduces wear, minimizes operating resistance, and improves positioning accuracy. The low coefficient of friction also helps reduce drive power requirements, contributing to improved machine efficiency and lower operating costs.
One of the major advantages of the THK LM20UU Linear Bearing is its excellent load-carrying capability. Manufactured using premium-grade bearing steel and advanced heat-treatment technology, the bearing provides outstanding wear resistance and dimensional stability under continuous operation. The hardened steel raceways maintain precise ball circulation even under heavy loads, ensuring long-term reliability and consistent motion accuracy. According to THK catalog data, the LM20UU offers a dynamic load rating of approximately **863 N** and a static load rating of **1, 370 N**, making it suitable for a wide range of industrial applications.
The integrated double seals provide excellent protection against contaminants such as dust, metal particles, coolant, and moisture. By keeping lubrication inside the bearing while preventing foreign particles from entering, the seals help reduce internal wear and extend service intervals. Regular lubrication according to manufacturer recommendations further enhances bearing performance and maximizes operational life.
The THK LM20UU Linear Bearing is widely used in CNC routers, milling machines, laser cutting machines, engraving machines, pick-and-place systems, automated assembly equipment, 3D printers, packaging machinery, printing presses, woodworking machines, pharmaceutical equipment, inspection systems, and laboratory automation. Its compact dimensions and high precision make it an excellent choice for applications where smooth and accurate linear motion is essential.
Installation of the LM20UU is simple due to its standardized metric dimensions. The bearing is designed to fit securely into precision-machined housings while operating with hardened and ground linear shafts. Proper shaft accuracy and alignment are essential to achieving maximum bearing performance, smooth movement, and extended service life. Because the LM20UU is compatible with internationally recognized dimensions, it can easily replace similar linear bearings in existing equipment.
The THK LM20UU also contributes to quieter machine operation by reducing vibration and rolling resistance. Its precision-manufactured ball circulation system minimizes noise during movement, making it suitable for applications where low operating noise is important, such as medical equipment, laboratory instruments, and high-speed automation systems. The combination of smooth travel, accurate positioning, and low maintenance makes the LM20UU one of the most reliable linear bearings available in the market.
Quality control is an important aspect of every THK product. Each LM20UU Linear Bearing undergoes rigorous inspection to ensure dimensional accuracy, surface finish, material hardness, and rolling performance before leaving the factory. This strict manufacturing process guarantees consistent product quality and dependable long-term performance under demanding operating conditions. Customers can rely on THK's engineering expertise for precision, durability, and operational efficiency.
Whether used in new machine designs or replacement applications, the THK LM20UU Linear Bearing delivers exceptional performance through its precision engineering, smooth linear motion, robust sealed construction, and high load capacity. Its reliable operation, low friction, excellent wear resistance, and long service life make it a preferred choice for OEM manufacturers, machine builders, maintenance engineers, and industrial automation professionals worldwide. By choosing the THK LM20UU Linear Bearing, users benefit from superior motion control, improved machine productivity, reduced maintenance costs, and the trusted quality associated with THK's globally recognized linear motion technology.
